3 Phase Electric Power Monitor Remote Control Iot Energy Meter Nb Iot 4g

Product Details

Place of Origin: China

Brand Name: Saving

Certification: CE

Model Number: DTM1218

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: $33.09/pieces-$58.82/pieces

Packaging Details: 198*112*71(mm)

Delivery Time: 5-15 works days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 10000pieces per month

Get Best Price
Highlight:

3 Phase Electric Power Monitor

,

Electric Power Monitor Nb Iot

,

Iot energy meter 4g

Color:
White
Communication:
RS485 Modbus\GSM
Display:
LCD Digital Display
Frequency:
50Hz
OEM/ODM:
Avaliable
Starting Current (A):
0.004Ib
Relative Humidity:
≤95%
Storage Temperature:
-40℃~70℃
Weight:
0.2Kg (net)
Color:
White
Communication:
RS485 Modbus\GSM
Display:
LCD Digital Display
Frequency:
50Hz
OEM/ODM:
Avaliable
Starting Current (A):
0.004Ib
Relative Humidity:
≤95%
Storage Temperature:
-40℃~70℃
Weight:
0.2Kg (net)

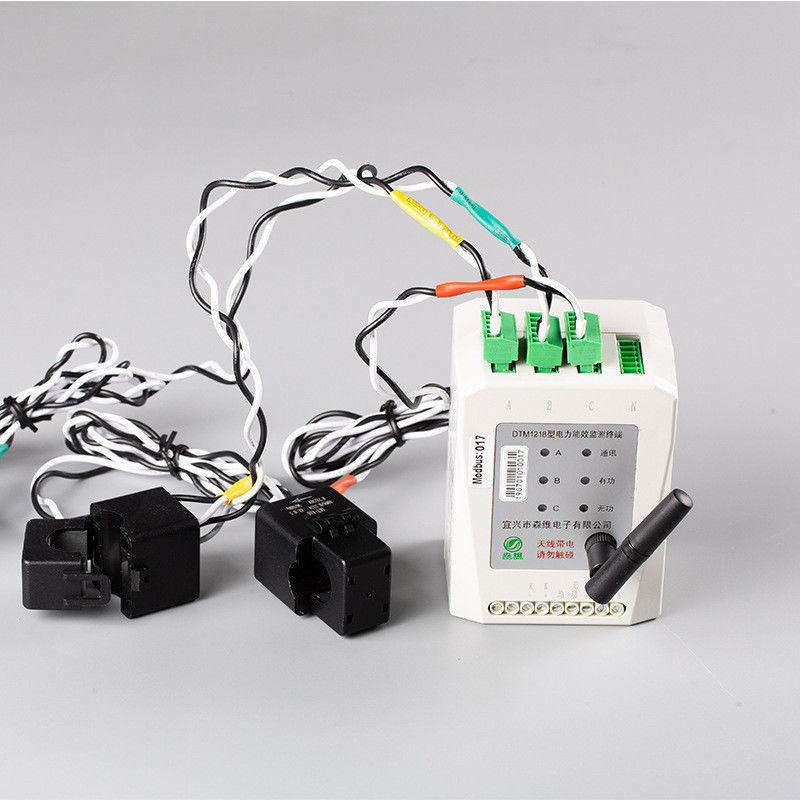

3 Phase Electric Power Monitor Remote Control Iot Energy Meter Nb Iot 4g

3 Phase Energy Terminal Monitoring Smart Iot Remote Control Nb Iot 4g Electric Meter





Product Description

The power efficiency monitoring terminal is mainly used for three-phase AC energy consumption monitoring, and can be optionally equipped with RS485 communication function and wireless communication function to facilitate users' power monitoring, centralized reading and remote monitoring management. The product has the advantages of high precision, small volume and convenient installation. It can be flexibly installed in the distribution box to realize the sub item electric energy measurement, statistics and analysis of different areas and loads.



Parameter

Voltage input
Rated voltage
3*380V,3*100V,3*380V
Rated voltage
50Hz
Voltage line power consumption
≤ 2W和5VA
Current input
Input current
5A,100A,200A,300A,400A,600A
Measure performance
Compliance with standards
GB/17215.321-2008
Clock battery voltage
3.6VDC
Communication
communication
RS485:2400bps
GPRS wireless communication
Communications Protocol
DL/T645–2007



Main Functions

1. Measure 4channels of active power, reactive power, combined active energy, four-quadrant reactive energy, etc .;
2. Measure 4 channels of current, voltage, active power, reactive power, apparent power, power factor, etc
3. There are two sets of tariff which can be automatically converted at the customized time, and each set supports 4 tariff and 8 periods
4. Abnormal events of the power grid can be recorded and reported actively
5. Communication function: Standard one RS485 communication interface, optional Lora, GPRS, NB-Iot, 4G
Application
Suitable for school dormitories, hotels, apartments,new energy,shopping malls,families.
