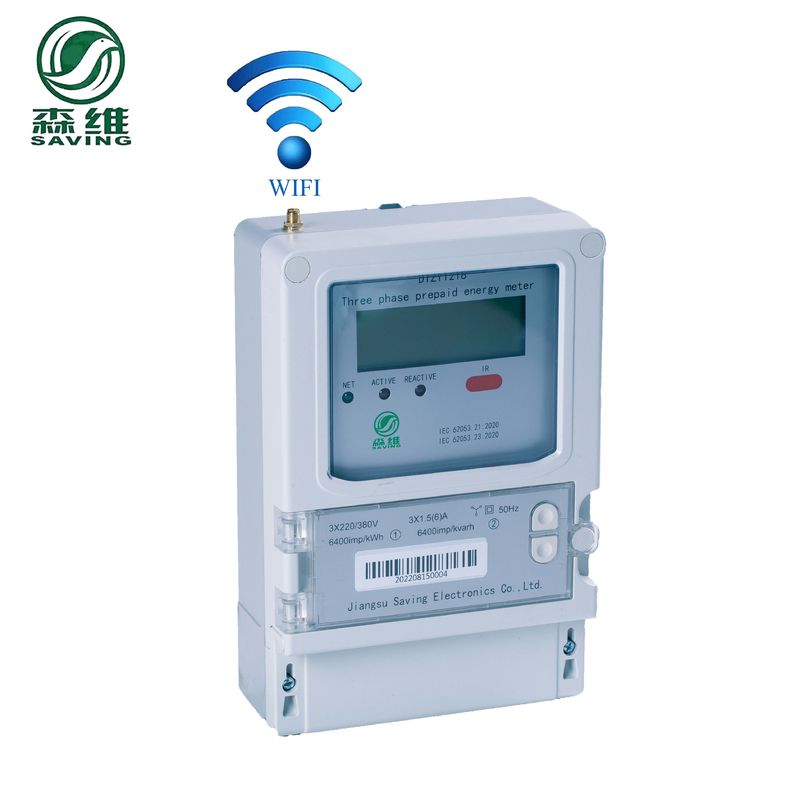

220V 380V LCD Three Phase Prepaid Energy Impact Meters Prepaid Wall Mounted

Product Details

Place of Origin: China

Brand Name: Saving

Certification: CE

Model Number: DTZ1218

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: $33.09/pieces-$58.82/pieces

Packaging Details: 288 x 167 x 72 mm

Delivery Time: 7-15 works days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 100000

Get Best Price
Highlight:

220V Three Phase Prepaid Energy Meter

,

380V Three Phase Prepaid Energy Meter

,

WIFI 4G impact meters prepaid

Display:
LCD
Accuracy:
Class 1.0
Data Storage:
0-999999
Voltage:
220V
Interface:
RS485
Weight:
1KG
Power:
1KW
Name:
3 Phase Prepaid Energy Meter
Display:
LCD
Accuracy:
Class 1.0
Data Storage:
0-999999
Voltage:
220V
Interface:
RS485
Weight:
1KG
Power:
1KW
Name:
3 Phase Prepaid Energy Meter
220V 380V LCD Three Phase Prepaid Energy Impact Meters Prepaid Wall Mounted

                                           Three Phase Wall-Mounted Prepaid Energy Meter

3X220/380V LCD Prepaid Electricity Meter Manufacturers Three Phase Wall-Mounted Prepaid Energy Meter with wifi/4G Module

Product Description:

The Three Phase Prepaid Energy Meter is a smart device that is designed to measure and monitor users' electricity consumption. It has an LCD display, and its color is white. It is equipped with a RS485 interface for communication, allowing users to use GPRS/GSM/WIFI/RS485 for remote access. With a weight of 1KG, it is a lightweight and versatile device. This Three Phase Prepaid Energy Meter is a perfect choice for users who need a reliable iot electric meter, smart prepaid electricity meter, or a wifi 3phase meter reader.



Features:

220V 380V LCD Three Phase Prepaid Energy Impact Meters Prepaid Wall Mounted 0

220V 380V LCD Three Phase Prepaid Energy Impact Meters Prepaid Wall Mounted 1



Technical Parameters:

Measurement function
Voltage
Voltage waste
error<10VA
Impedance
>2MΩ
Accuracy grade
±0.2%
Current
Current specification
1.5(6)A 5(60)A 20(80)A 10(100)A
Current waste
error<4VA
Accuracy grade
±0.2%
Power
Active, reactive and power error±0.2%
Grid frequency
45-65Hz error±0.2%
electric energy
Active power level 1&2
Digital signal
Electric pulse output
Active optocoupler output
Pulse constant
6400imp/KWh 400imp/KWh
Starting current
Connect directly
0.004In (level 1) reactive:0.004In (level 2)
Connect by CT
0.002Ib
Communication
Interface and communication protocol
RS485¨ Modbus¨ DL/T 645-2007¨
Mailing address range
Modbus 1~247
Baud rate
1200bps~9600bps
Environment
Altitude
atmospheric pressure:63.0kPa~106.0kPa(﹤4000m above sea level )Except for special order requirements

Applications:

220V 380V LCD Three Phase Prepaid Energy Impact Meters Prepaid Wall Mounted 2


Detail Images:

220V 380V LCD Three Phase Prepaid Energy Impact Meters Prepaid Wall Mounted 3


Support and Services:

Technical Support and Service for Three Phase Prepaid Energy Meter

We provide comprehensive technical support and services for Three Phase Prepaid Energy Meter. Our services include:

  • Installation and configuration assistance.
  • Troubleshooting and maintenance guidance.
  • Software and firmware updates.
  • User documentation and training.
  • 24/7 technical assistance.

Our team of experienced technicians is available to answer your questions and provide support whenever you need it. We guarantee fast response times and a resolution to any problem you may be experiencing.



Packing and Shipping:

Packaging and Shipping

The Three Phase Prepaid Energy Meter will be packaged in a cardboard box with an inner cushioning of molded foam to protect the product. The box will include the product, the user manual and instructions, and other necessary accessories. The box will be labeled with an address and barcode specific to the product.

Once the product is packaged, it will be shipped through a reliable third-party shipping company. The shipping company will handle all packing, labeling, and delivery of the product.



FAQ:

Q: What is a Three Phase Prepaid Energy Meter?

A: A Three Phase Prepaid Energy Meter is a device to measure the amount of energy consumed and allow users to pay in advance for the electricity they use.

Q: What is the brand name of the Three Phase Prepaid Energy Meter?

A: The brand name of the Three Phase Prepaid Energy Meter is Saving.

Q: What after-sales service is provided?

A: Usually, we provide online technical services, including product instructions, remote software debugging, and online video guidance. If needed, we can go to customers' site for products debugging and project guidance. But customers should be responsible for our accommodation, transportation and safety.

Q: Where is the Three Phase Prepaid Energy Meter manufactured?

A: The Three Phase Prepaid Energy Meter is manufactured in China.

Q: Does the Three Phase Prepaid Energy Meter have a CE certification?

A: Yes, the Three Phase Prepaid Energy Meter has CE certification.
