Home > products > Electric Token Meter > 230V Electric Token Meter Single Phase Wattmeter Sts Keyboard Prepaid Prepayment

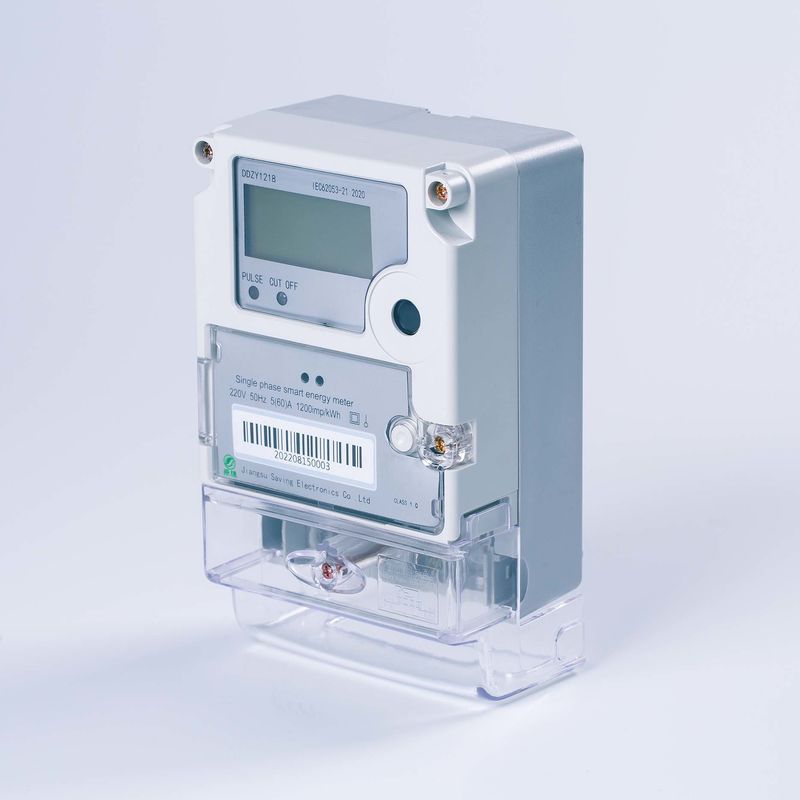

230V Electric Token Meter Single Phase Wattmeter Sts Keyboard Prepaid Prepayment

Product Details

Place of Origin: China

Brand Name: Saving

Certification: CE

Model Number: DDZY1218

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: $33.09/pieces-$58.82/pieces

Packaging Details: 198*112*71(mm)

Delivery Time: 5-15 works days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 10000pieces per month

Get Best Price
Highlight:

230V Electric Token Meter

,

Electric Token Meter Prepaid

,

single phase wattmeter Sts Keyboard

Color:
White
Communication:
RS485 Modbus\GSM
Display:
LCD Digital Display
Frequency:
50Hz
OEM/ODM:
Avaliable
Starting Current (A):
0.004Ib
Relative Humidity:
≤95%
Storage Temperature:
-40℃~70℃
Weight:
1.2Kg (net)
Color:
White
Communication:
RS485 Modbus\GSM
Display:
LCD Digital Display
Frequency:
50Hz
OEM/ODM:
Avaliable
Starting Current (A):
0.004Ib
Relative Humidity:
≤95%
Storage Temperature:
-40℃~70℃
Weight:
1.2Kg (net)
230V Electric Token Meter Single Phase Wattmeter Sts Keyboard Prepaid Prepayment

Wireless Single Phase Power Meter Sts Keyboard Prepaid Prepayment Meter



Product Description



The Electric Token Meter is a small, high-accuracy single phase energy meter featuring an LCD display and an operating temperature range of -20℃~+50℃. This prepaid token electric energy meter is ideal for managing electricity consumption using prepaid tokens, as well as prepaid token GSM energy meters. Its small size and high accuracy make it suitable for residential and commercial electricity supply, allowing users to accurately monitor their energy usage. With the Electric Token Meter, users can easily pay for their electricity using prepaid tokens, ensuring that electricity consumption is well managed and monitored.



Parameter

Measurement function
Voltage
Reference voltage
230V
Voltage waste
error<10VA
Impedance
>2MΩ
Accuracy grade
±0.2%
Current
Current specification
5(60)A
Current waste
error<4VA
Accuracy grade
±0.2%
Power
Active, reactive and power error±0.2%
Grid frequency
45-65Hz error±0.2%
electric energy
Active power level 1
Digital signal
Electric pulse output
Active optocoupler output
Pulse constant
1600imp/KWh
Starting current
0.004Ib
Communication
Interface and communication protocol
RS485¨ Modbus¨ DL/T 645-2007¨
Mailing address range
Modbus 1~247
Baud rate
1200bps~9600bps
Overall dimensions
198×112×71(mm)
Environment
Working temperature
-25℃~60℃
Storage temperature:
-40℃~70℃
Relative humidity
≤95%
Altitude
atmospheric pressure:63.0kPa~106.0kPa(﹤4000m above sea level )Except for special order requirements







Main Functions

  1. Metering function
  2. Maximum demand recording function Measurement and monitoring
  3. Event record
  4. Alarm function
  5. Timing function
  6. Communication interface
  7. Anti electricity theft function

Application
Suitable for school dormitories, hotels, apartments,new energy,shopping malls,families.
64x64
Company Profile
Jiangsu Saving Electronics Co., Ltd. is a one-stop energy metering management service provider with smart meters as the core, providing one-stop services related to energy metering equipment, data acquisition equipment, cloud software, system integration, system operation and maintenance.
Electric Token Meter Technical Support and Service

We provide technical support and service for our Electric Token Meter product. Our team of highly skilled technicians is available to provide you with assistance in installation, troubleshooting, setup, and maintenance.

We are dedicated to customer satisfaction and offer a variety of support options to fit your needs. Our trained technicians can provide on-site and remote support to ensure your Electric Token Meter is operating properly and efficiently.

We also provide regular maintenance and software updates to ensure your Electric Token Meter is up-to-date and running at peak performance. In addition, our support staff can provide troubleshooting and technical advice to help you get the most out of your Electric Token Meter.

If you need assistance with your Electric Token Meter, please contact us today. We're here to help you get the most out of your product.

Core products such as: smart meter, guide rail smart meter, multi-functional digital meter, multi-user electricity meter, power information collection terminal, concentrator, power energy efficiency monitoring terminal, etc., are independently developed and produced. Jiangsu Saving Electronics Co.,Ltd has 25 authorized patents, 12 software Copyrights, belongs to a national high-tech enterprise.

230V Electric Token Meter Single Phase Wattmeter Sts Keyboard Prepaid Prepayment 1

Packaging & Shipping
Packaging and Shipping for Electric Token Meter

Electric Token Meter should be packaged according to the following:

  • Product should be placed in a protective inner box.
  • The inner box should then be placed into a cardboard outer box.
  • Label the outer box with the shipping address.
  • Secure the box with packing tape.

Electric Token Meter should be shipped by a reliable carrier, such as FedEx, UPS, or DHL.

30x30
64x64

Certifications

64x64

FAQ

Q1: What is an Electric Token Meter?

A: An Electric Token Meter is a device for measuring electricity consumption. It is equipped with a token reader and a display, and it is mainly used to control and manage electricity consumption.

Q2: What is the brand name and model number of Electric Token Meter?

A: The brand name is Saving and the model number is DDZY1218.

Q3: Where is the Electric Token Meter made?

A: The Electric Token Meter is made in China.

Q4: Does the Electric Token Meter have a CE certification?

A: Yes, the Electric Token Meter has a CE certification.

Q5: What is the minimum order quantity and delivery time for the Electric Token Meter?

A: The minimum order quantity for the Electric Token Meter is 5, and the delivery time is 7-15 working days.
