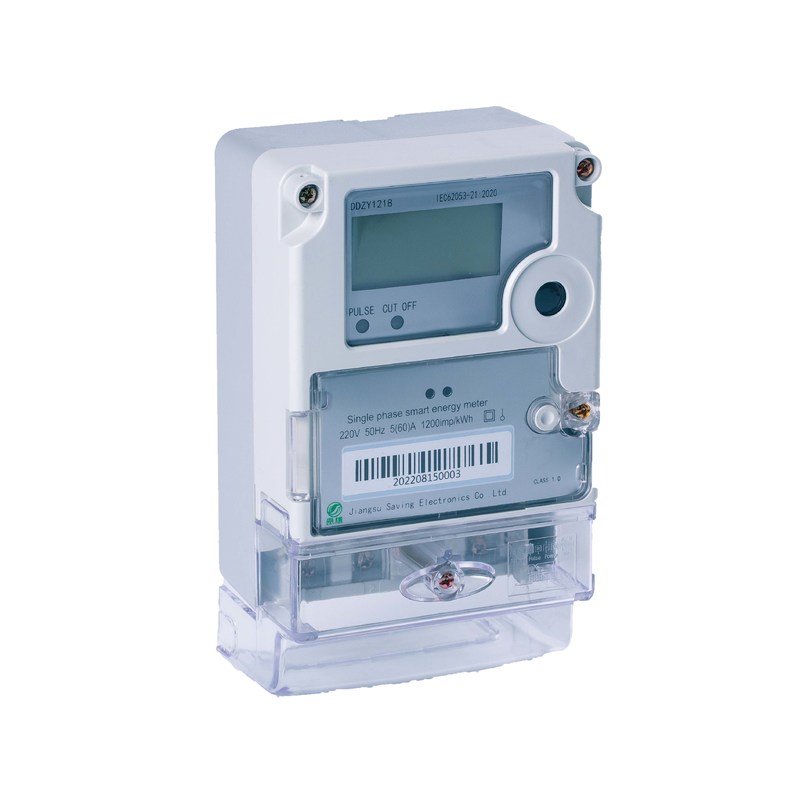

Wireless Sts Electric Token Meter Single Phase wattmeter and energy meter 0.004Ib

Product Details

Place of Origin: China

Brand Name: Saving

Certification: CE

Model Number: DDZY1218

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: $33.09/pieces-$58.82/pieces

Packaging Details: 198*112*71(mm)

Delivery Time: 5-15 works days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 10000pieces per month

Get Best Price
Highlight:

Wireless Electric Token Meter

,

Sts Electric Token Meter

,

wattmeter and energy meter 0.004Ib

Color:
White
Communication:
RS485 Modbus\GSM
Display:
LCD Digital Display
Frequency:
50HZ
OEM/ODM:
Avaliable
Starting Current (A):
0.004Ib
Relative Humidity:
≤95%
Storage Temperature:
-40℃~70℃
Weight:
1.2Kg (net)
Color:
White
Communication:
RS485 Modbus\GSM
Display:
LCD Digital Display
Frequency:
50HZ
OEM/ODM:
Avaliable
Starting Current (A):
0.004Ib
Relative Humidity:
≤95%
Storage Temperature:
-40℃~70℃
Weight:
1.2Kg (net)
Wireless Sts Electric Token Meter Single Phase wattmeter and energy meter 0.004Ib

Wireless Single Phase Power Meter Sts Keyboard Prepaid Prepayment Meter



Product Description

Electric Token Meter is a three-phase energy meter that is specifically designed to offer prepaid token meters for Indonesia. This token electric meter is highly reliable and can be used in a wide range of operating temperatures from -20℃ to +50℃. It has a power rating of 50W and a protection level of IP55, and supports a voltage of 220V. It also has a data storage function to store information such as token codes. With its high accuracy, durability, and user-friendly design, the Electric Token Meter is an ideal choice for customers who need a reliable and secure token meter.



Parameter

Measurement function
Voltage
Reference voltage
230V
Voltage waste
error<10VA
Impedance
>2MΩ
Accuracy grade
±0.2%
Current
Current specification
5(60)A
Current waste
error<4VA
Accuracy grade
±0.2%
Power
Active, reactive and power error±0.2%
Grid frequency
45-65Hz error±0.2%
electric energy
Active power level 1
Digital signal
Electric pulse output
Active optocoupler output
Pulse constant
1600imp/KWh
Starting current
0.004Ib
Communication
Interface and communication protocol
RS485¨ Modbus¨ DL/T 645-2007¨
Mailing address range
Modbus 1~247
Baud rate
1200bps~9600bps
Overall dimensions
198×112×71(mm)
Environment
Working temperature
-25℃~60℃
Storage temperature:
-40℃~70℃
Relative humidity
≤95%
Altitude
atmospheric pressure:63.0kPa~106.0kPa(﹤4000m above sea level )Except for special order requirements







Main Functions

  1. Metering function
  2. Maximum demand recording function Measurement and monitoring
  3. Event record
  4. Alarm function
  5. Timing function
  6. Communication interface
  7. Anti electricity theft function

Application
Suitable for school dormitories, hotels, apartments,new energy,shopping malls,families.
