Product Details
Place of Origin: China
Brand Name: Saving
Certification: CE
Model Number: DDSU1218
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: $17.80/pieces-$26.00/pieces
Packaging Details: 89*76*77mm
Delivery Time: 5-15 works days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000pieces per month
Communication: |
RS485 Modbus\NB |
Display: |
LCD Digital Display |
Frequency: |
50Hz |
OEM/ODM: |
Avaliable |
Starting Current (A): |
0.004Ib |
Relative Humidity: |
≤95% |
Storage Temperature: |
-40℃~70℃ |
Weight: |
0.4Kg (net) |
Color: |
White |
Material: |
PC |
Communication: |
RS485 Modbus\NB |
Display: |
LCD Digital Display |
Frequency: |
50Hz |
OEM/ODM: |
Avaliable |
Starting Current (A): |
0.004Ib |
Relative Humidity: |
≤95% |
Storage Temperature: |
-40℃~70℃ |
Weight: |
0.4Kg (net) |
Color: |
White |
Material: |
PC |

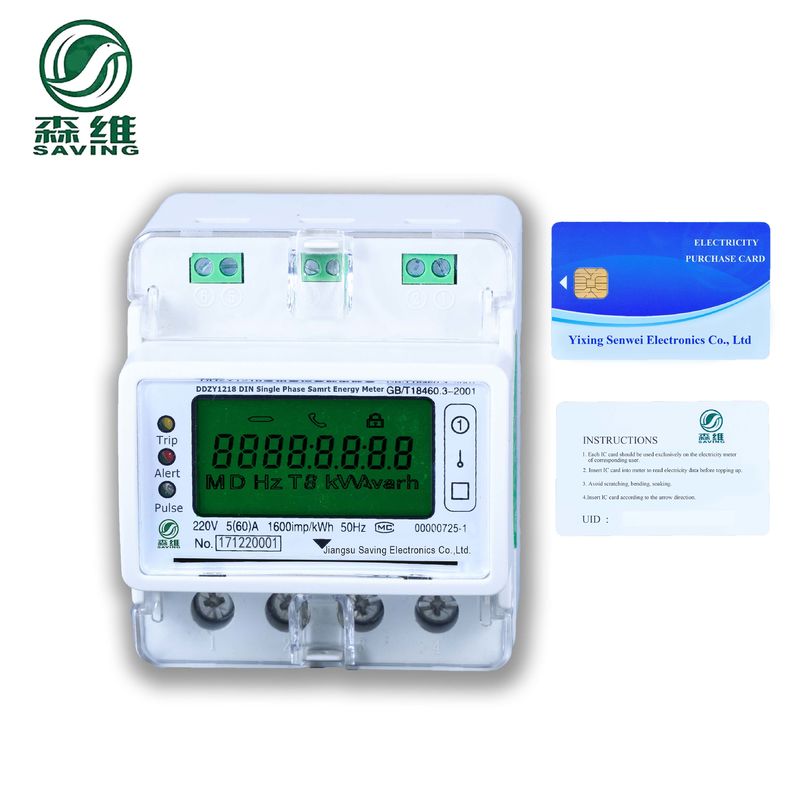

Ic Card Local Or Remote Prepaid Single Phase Din Rail Cost Control Watt Hour Meter
Product Description
single-phase fee-controlled smart electric energy meter is a new generation of electric energy metering product developed and produced by our company according to the relevant technical specifications of smart electric meters of State Grid Corporation. This product adopts application-specific large-scale integrated circuit and SMT production process, and has the functions of electric energy metering, data processing, real-time monitoring, automatic control, information interaction and so on.
Parameter
|
Voltage Input
|
Rated Voltage
|
220V
|
|
|
Reference Frequency
|
50Hz
|
|
|
Voltage Line Power Consumption
|
≤ 1.5 W and 10 VA (Static)
|
|
Current input
|
Input Current
|
5(20)A,5(60)A,10(40)A,15(60)A
|
|
|
Starting Current
|
Direct Access Type ≤ 0.004 Ib
|
|
|
Current Line Power Consumption
|
< 2 VA
|
|
Measurement Accuracy
|
Accuracy
|
Level 1
|
|
Signal Communication
|
Communication
|
RS485:2400bps
|
|
|
Signal Communication
|
DL/T645-2007
|
|
Pulse
|
Pulse Constant
|
6400,400 (imp/kwh)
|
|
Other parameters
|
Normal Operating Temperature
|
25℃~+60℃
|
|
|
Storage And Working Humidity
|
≤85%
|
Main Functions
1. High accuracy measurement of positive and negative active / reactive electric energy.
2. The main components are high-quality special components designed for electronic energy meters.
3. LCD screen with wide viewing angle and high contrast is used for display.
4. It has voltage, current, power, power factor and other measurement functions.
5. Support RS-485 communication protocol.
6. Guide rail installation is adopted, which is convenient and light in volume.
7. This product is applicable to DC piles of various large-scale charging equipment (devices are required to convert DC to AC during metering), such as high-power charging piles, bus charging facilities, etc. More suitable for small charging piles.
Jiangsu Saving Electronics Co.,Ltd. was established in August 2011, the founder focused on energy metering, energy consumption monitoring overall solution design for more than 20 years, the core technology backbone and management cadres are senior experts in the industry for more than 8 years.
Core products such as: smart meter, guide rail smart meter, multi-functional digital meter, multi-user electricity meter, power information collection terminal, concentrator, power energy efficiency monitoring terminal, etc., are independently developed and produced. Jiangsu Saving Electronics Co.,Ltd has 25 authorized patents, 12 software Copyrights, belongs to a national high-tech enterprise.
FAQ
1. Q: What after-sales service is provided?
A: Usually, we provide online technical services, including product instructions, remote software debugging, and online video guidance. If needed, we can go to customers' site for products debugging and project guidance. But customers should be responsible for our accommodation, transportation and safety.
2. Q: Are you a direct manufacturer and exporter from China?
A: Yes, we are. We are the local OEM & ODM manufacturer, have our own factory and International Trade Department.
3. Q: Where’s your factory located?
A: Our factory locates in Yixing city, Jiangsu Province, China. It takes about 2hours by speed train from Shanghai Airport to our city. You are warmly welcome to visit our factory anytime.
4. Q: How do I purchase your goods?
A: Please send us your inquiries (specification, pictures, application) via Alibaba, E-mail, Wechat or WhatsApp us. Also you can give us a call directly about your requirements, we’ll reply you ASAP.
5. Q: How long is the lead time?
A: It takes about 30 working days after sample confirmed and deposit received. If you need the goods urgently, please tell us, and we can will try our best to give you priority.
