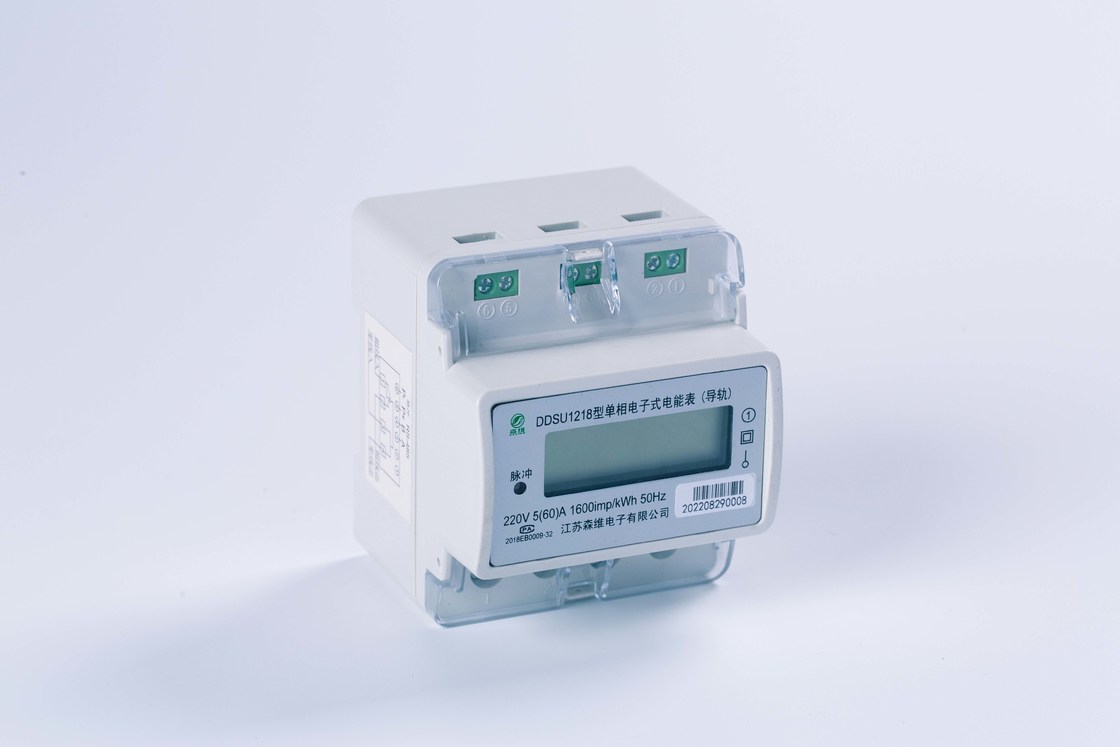

White RS485 Single Phase Prepaid Energy Meter Din Rail Energy Meter Wifi

Product Details

Place of Origin: China

Brand Name: Saving

Certification: CE

Model Number: DTZY1218

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: $15.88/pieces-$24.26/pieces

Packaging Details: 158x112x60mm

Delivery Time: 5-15 works days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 10000pieces per month

Get Best Price
Highlight:

White Single Phase Prepaid Energy Meter

,

RS485 Single Phase Prepaid Energy Meter

,

din rail energy meter wifi 50Hz

Color:
White
Communication:
RS485 Modbus\GSM
Display:
LCD Digital Display
Frequency:
50Hz
OEM/ODM:
Avaliable
Starting Current (A):
0.004Ib
Relative Humidity:
≤95%
Storage Temperature:
-40℃~70℃
Weight:
1.3Kg (net)
Color:
White
Communication:
RS485 Modbus\GSM
Display:
LCD Digital Display
Frequency:
50Hz
OEM/ODM:
Avaliable
Starting Current (A):
0.004Ib
Relative Humidity:
≤95%
Storage Temperature:
-40℃~70℃
Weight:
1.3Kg (net)
White RS485 Single Phase Prepaid Energy Meter Din Rail Energy Meter Wifi

Single Phase Prepaid Smart Energy Meter With RS485/GSM Module For Apartment​

White Single Phase Prepaid Smart Energy Meter With RS485/GSM Module For Apartment



Product Description

DDZY1218-Z single-phase charge control smart watt hour meter is a new generation of electric energy metering product developed and produced by the company in accordance with the relevant technical specifications of the State Grid Corporation of China smart meter. Designed in accordance with GB/T 17215.321-2008 and DL/T 645-200 standards, this product adopts dedicated large-scale integrated circuits and SMT production processes, and has functions such as electricity metering, data processing, real-time monitoring, automatic control, and information exchange.



Parameter

Reference Voltage
220V
Current Specification
5(20),5(60),10(40),15(60)A
Rated Frequency
50Hz
Accuracy Level
Active Level 1, Reactive Level 2
Power Consumption
Voltage line: <=1.5W, 10VA; current line: <1VA
Temperature Range
Working temperature range -25~55degree,
extreme working temperature range -40~70 degree
Meter Constant(imp/kWh)
1600
Humidity Range
40%~60%, working relative humidity be controlled within 95%

White RS485 Single Phase Prepaid Energy Meter Din Rail Energy Meter Wifi 0



Main Functions

1. Display with LCD display with wide viewing angle and high contrast
2. IC card fee control
3. Voltage sampling loop adopts resistance voltage division
4. High-precision,high-sensitivity,high-stability,wide-range,low-power dedicated metering chip
5. High-stability,wide-range manganese-copper shunt with current loop
6. Application places:community,hotel,shopping mall ,office building,school,property,etc
7. The dimensions of the case structure are uniform,exquisite and easy to install
8. Use CPU card /SD card
9. Display information:cumulative electricity consumption in the current month and last month,cumulative electric energy
indication value and total accumulated electric energy indication value,current date and time,alarm code or prompt,
communication status prompt,meter number of electric energy meter,etc.
10. Main functions:security authentication encryption requirement,event recording function,Strong structure,good sealing
performance
11. Communication method:RS485,infrared,
12. Optional built-in relay for load control.Advantages:simple structure and cheap price.


Application
Suitable for school dormitories, hotels, apartments,new energy,shopping malls,families.
64x64
Company Profile
Jiangsu Saving Electronics Co., Ltd. is a one-stop energy metering management service provider with smart meters as the core, providing one-stop services related to energy metering equipment, data acquisition equipment, cloud software, system integration, system operation and maintenance.

"Focus on energy management, help energy conservation and emission reduction" is our mission

"safer electricity use, Customer reassuring, Employee happy, lower carbon society" is our vision

"accurate measurement, reliable and credible" is our commitment

"honest management, mutual benefit and win-win solution" is our principle.

Innovation is the eternal pursuit of Senwei people. We will continue to give full play to our technical advantages in the field of energy measurement and management to help our customers achieve the goal of scientific energy use, energy saving and consumption reduction.

White RS485 Single Phase Prepaid Energy Meter Din Rail Energy Meter Wifi 2

Packaging & Shipping
30x30
64x64


Certifications

64x64

FAQ

1. Q: What after-sales service is provided? A: Usually, we provide online technical services, including product instructions, remote software debugging, and online video guidance. If needed, we can go to customers' site for products debugging and project guidance. But customers should be responsible for our accommodation, transportation and safety.

2. Q: Are you a direct manufacturer and exporter from China?
A: Yes, we are. We are the local OEM & ODM manufacturer, have our own factory and International Trade Department.
3. Q: Where’s your factory located?
A: Our factory locates in Yixing city, Jiangsu Province, China. It takes about 2hours by speed train from Shanghai Airport to our city. You are warmly welcome to visit our factory anytime.
4. Q: How do I purchase your goods?
A: Please send us your inquiries (specification, pictures, application) via Alibaba, E-mail, Wechat or WhatsApp us. Also you can give us a call directly about your requirements, we’ll reply you ASAP.
5. Q: How long is the lead time?
A: It takes about 30 working days after sample confirmed and deposit received. If you need the goods urgently, please tell us, and we can will try our best to give you priority.
