Home > products > Single Phase Prepaid Energy Meter > 1W 220V Single Phase Electric Smart Prepaid Electricity Meter With LCD Display

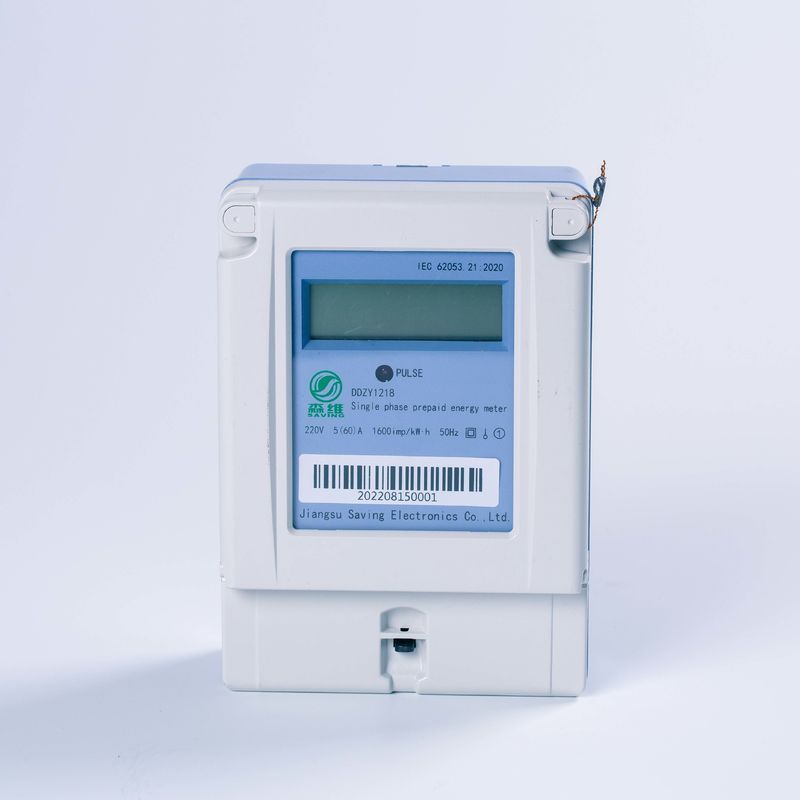

1W 220V Single Phase Electric Smart Prepaid Electricity Meter With LCD Display

Product Details

Place of Origin: China

Brand Name: Saving

Certification: CE

Model Number: DDZY1218

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: $17.80/pieces-$21.00/pieces

Packaging Details: 158×112×60(mm)

Delivery Time: 7-15 works days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 100000

Get Best Price
Highlight:

1W 220V single phase electric meter

,

RS485 single phase electric meter

,

LCD Display smart prepaid electricity meter

Dimension:
160x112x71mm
Starting Current (A):
Direct Access Type<=0.004Ib
Measuring Energy Range:
0-999999
Weight:
0.8kg
Accuracy Class:
1.0/2.0/0.5
Display:
LCD
Power Consumption:
Voltage Line: <=1W, 5VA; Current Line: <=1VA
Operating Temperature:
-25℃~+55℃
Dimension:
160x112x71mm
Starting Current (A):
Direct Access Type<=0.004Ib
Measuring Energy Range:
0-999999
Weight:
0.8kg
Accuracy Class:
1.0/2.0/0.5
Display:
LCD
Power Consumption:
Voltage Line: <=1W, 5VA; Current Line: <=1VA
Operating Temperature:
-25℃~+55℃
1W 220V Single Phase Electric Smart Prepaid Electricity Meter With LCD Display



Electric Energy Meter Single Phase Prepaid Energy Meter With LCD Display Prepaid Meter Energy Smart

Product Description:

The Single Phase Prepaid Energy Meter is a reliable metering system designed for high accuracy measurement of electricity consumption. It is suitable for single phase energy metering in commercial and residential facilities. In addition, the power consumption of the voltage line is less than 1W and 5VA, while the current line is less than 1VA. This Single Phase Prepaid Energy Meter is a reliable and cost-effective solution for prepaid metering applications.



Features:

1.Measure active electric energy, no need of calibration for long-term operation;

2.Adopt dedication meter age chip ADE7755;

3.Adopt lasted electricity dedication integrated circuit including digital multiplieroverseas, greatly improved dynamic working range of Meter, making 1 multipleactual overload;

4.Have good mistake linearity in the range of 5%Ib~Imax;

5.Few periphery component, simple structure, low power consumption;

6.Adopt high reliability and long life electronic component, so the meter assumefeatures of high reliability and long life. *Way of display: register, LCD, digital tube. *Remote interruption of power supply function. *Output interface RS485

Technical Parameters:

Parameter Value
Product Name Single Phase Prepaid Energy Meter
Relative Humidity ≤95%
Frequency 50Hz
Voltage 220V
Measuring Energy Range 0-999999
Display LCD
Accuracy Class 1.0/2.0/0.5
Current 5(60)A
Weight 0.8kg
Power Consumption Voltage Line: <=1W, 5VA; Current Line: <=1VA

1W 220V Single Phase Electric Smart Prepaid Electricity Meter With LCD Display 0

Customization:

Where can Single Phase Prepaid Energy Meter be customized:
  • Brand Name/LOGO
  • Model Number
  • Communication: RS485/ GPRS/ GSM/ WIFI/ NB/ LORA

Single Phase Prepaid Monitor is a prepaid electricity meter with wifi function. It is specially designed for customers who need to manage their energy consumption more efficiently. It is certified with CE standard to ensure the highest quality and safety. The operating temperature range is -25℃~+55℃, and the current can reach up to 5(60)A. It supports communication through RS485/ GPRS/ GSM/ WIFI/ NB/ LORA, and its relative humidity is ≤95%. The weight is only 0.8kg. Minimum order quantity is 5, and delivery time is 7-15 works days.



Support and Services:

Technical Support and Service for Single Phase Prepaid Energy Meter

We provide comprehensive technical support and service for Single Phase Prepaid Energy Meter. We have a team of highly experienced and dedicated experts who are always ready to help. Our support and service includes:

  • 24/7 technical support
  • Regular maintenance and repair services
  • Real-time monitoring of performance
  • Software and firmware updates
  • Troubleshooting and diagnosis of issues
  • Replacement of parts and components
  • Assistance with installation and setup

We are committed to providing the highest quality of service and technical support to our customers. We understand that a reliable and efficient energy meter is essential for your business, and we strive to ensure that you have the best possible experience with our product.

1W 220V Single Phase Electric Smart Prepaid Electricity Meter With LCD Display 1

Packing and Shipping:

Packaging and Shipping for Single Phase Prepaid Energy Meter
  • The Single Phase Prepaid Energy Meter is packaged in an individual, sealed box.
  • The box is then placed in an outer cardboard box with the necessary packing materials to ensure the product is securely shipped.
  • The shipment is delivered via a secure, reliable delivery service.


FAQ:

Q: What is a single phase prepaid energy meter?
A: Single-phase prepaid energy meter uses electronic technology to measure energy and having metering technology.
Q: What is the difference between smart and traditional prepay meters?
A: The main difference between smart meters and prepay meters is the way you pay for your energy.
There are two main forms of prepayment meter:
key meters and smart card meters :
Key meters are used with an electronic key that holds the information on your current energy deal.
Smart card meters are used with a card that will transfer information directly to your supplier when topped up.
