Home > products > Single Phase Prepaid Energy Meter > 50Hz Electrical One Phase Energy Meter Single Phase Electronic With IC Card

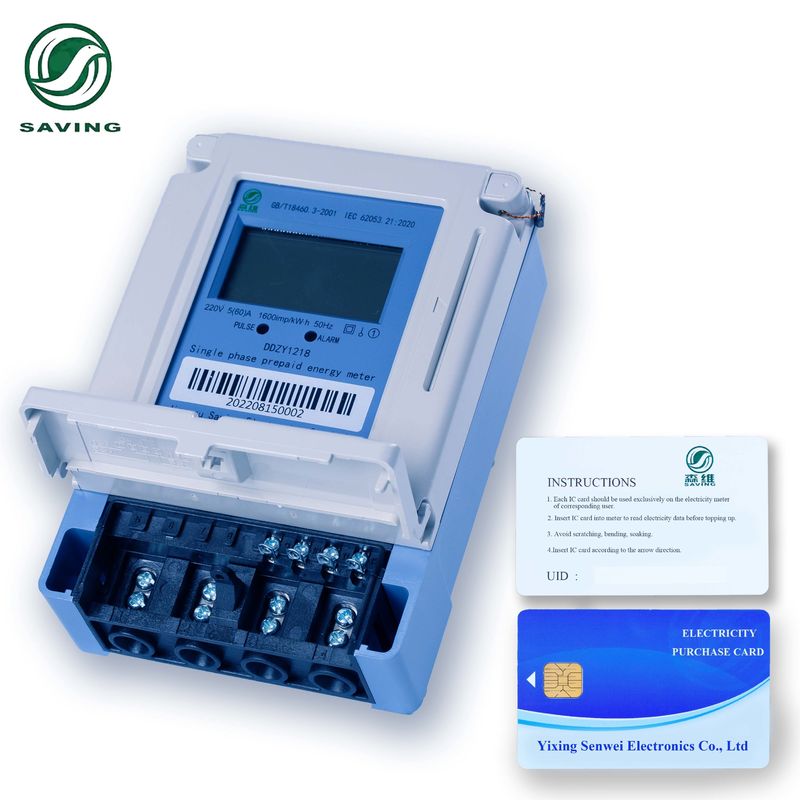

50Hz Electrical One Phase Energy Meter Single Phase Electronic With IC Card

Product Details

Place of Origin: China

Brand Name: Saving

Certification: CE

Model Number: DDZY1218

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: $17.80/pieces-$21.00/pieces

Packaging Details: 158x112x60mm

Delivery Time: 7-15 works days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 100000

Get Best Price
Highlight:

50Hz one phase energy meter

,

Electrical one phase energy meter

,

single phase electronic energy meter

Accuracy Class:
1.0/2.0/0.5
Operating Temperature:
-25℃~+55℃
Product Name:
Single Phase Prepaid Energy Meter
Current:
5(60)A
Measuring Energy Range:
0-999999
Display:
LCD
Power Consumption:
Voltage Line: <=1W, 5VA; Current Line: <=1VA
Weight:
0.8kg
Model NO.:
DDZY1218
Rated Frequency (Hz):
50 Or 60HZ
Accuracy Class:
1.0/2.0/0.5
Operating Temperature:
-25℃~+55℃
Product Name:
Single Phase Prepaid Energy Meter
Current:
5(60)A
Measuring Energy Range:
0-999999
Display:
LCD
Power Consumption:
Voltage Line: <=1W, 5VA; Current Line: <=1VA
Weight:
0.8kg
Model NO.:
DDZY1218
Rated Frequency (Hz):
50 Or 60HZ
50Hz Electrical One Phase Energy Meter Single Phase Electronic With IC Card



Electrical Electronic Meter Electric Single Phase Prepaid Energy Meter

China Factory Seller Electrical Electronic Meter Electric Single Phase Prepaid Energy Meter with IC card

Product Description:

Single Phase Prepaid Metering is a reliable energy meter ideal for residential and commercial applications. It is designed to measure single phase energy ranging from 0-999999 and can accommodate current up to 5(60)A. This single phase prepaid meter has a starting current of 0.004Ib or less, making it suitable for Direct Access Type. Furthermore, it has a lightweight design with a weight of 0.8kg, and has a frequency of 50Hz.

The Single Phase Prepaid Meter is a great choice for those looking for a dependable energy metering solution. Its energy range, current and starting current capabilities make it suitable for a wide range of applications. In addition, its lightweight design and frequency stability add to its overall performance.

For reliable energy metering solutions, the Single Phase Prepaid Meter is the perfect choice. With its wide range of capabilities, it is sure to meet the needs of any customer.



Features:

1. Active single-phase electric power metering, no subject to adjust in terms of longworking.

2. Each user (meter) responds to a card, well protect from forgery;

3. Once the remaining electric power quality is approaching the alarming powerquality, the digital tube should be lighted to remind user of timely purchasing;

4. Once the electric consumption available is out, it should be auto cut-off;

5. Protect from power theft, and recording the information automatically;

6. Auto cut-off for overload;

7. Data copy function make the electricity department easier manage;

8. Large capacity magnetic maintains reply, low power consumption, high reliability.

9. Adopt high reliability and long life electronic component, so the meter assumesfeatures of high reliability and long life.

10. The IC card power selling control system has the function as power selling andusing control.



Technical Parameters:

Parameter Value
Product Name Single Phase Prepaid Energy Meter
Weight 0.8kg
Current 5(60)A
Voltage 220V
Measuring Energy Range 0-999999
Starting Current (A) Direct Access Type<=0.004Ib
Dimension 160x112x71mm
Operating Temperature -25℃~+55℃
Frequency 50Hz
Relative Humidity ≤95%



50Hz Electrical One Phase Energy Meter Single Phase Electronic With IC Card 0

Applications:

50Hz Electrical One Phase Energy Meter Single Phase Electronic With IC Card 1



Customization:

50Hz Electrical One Phase Energy Meter Single Phase Electronic With IC Card 2

Support and Services:

Single Phase Prepaid Energy Meter Technical Support and Service:

  • Provide free technical support and services for the Single Phase Prepaid Energy Meter.
  • Provide professional and timely after-sales service.
  • Offer warranty and repair services in case of malfunction.
  • Provide software and firmware upgrades for the Single Phase Prepaid Energy Meter.
  • Provide users with helpful installation and operation instructions.


Packing and Shipping:

Packaging and Shipping of Single Phase Prepaid Energy Meter

The Single Phase Prepaid Energy Meter is packaged in a strong cardboard box with custom foam inserts to ensure that the Meter is not damaged during transit.

The box is then sealed with strong tape to prevent tampering.

The Single Phase Prepaid Energy Meter is shipped via an express air courier service to ensure that the Meter reaches its destination quickly and safely.



FAQ:

1.Could I have prices of your products?
Welcome.PIs feel free to send us an email here.You will get our reply in 24 hours

2.Can we print our logo/website/company name on products?
Yes,please advise the size and Pantone Code of the logo.

3.What's the lead time for regular order?
7-15 days for order quantity lower than 1000pc;For more quantity,usually 20 days.

4.Can I get a sample before the bulk order?
Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.

5.Do you inspect the finished products?
Yes,each step of production and finished products will be came out inspection by QC department before shipping
