Product Details
Place of Origin: China
Brand Name: Saving
Certification: CE
Model Number: DDSU1218
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: $17.80/pieces-$21.00/pieces
Packaging Details: 34.8*89.8*69mm
Delivery Time: 5-15 works days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000pieces per month
Communication: |
RS485 Modbus\NB |
Display: |
LCD Digital Display |
Frequency: |
50Hz |
OEM/ODM: |
Avaliable |
Starting Current (A): |
0.004Ib |
Relative Humidity: |
≤95% |
Storage Temperature: |
-40℃~70℃ |
Weight: |
0.2Kg (net) |
Color: |
White |
Material: |
PC |
Communication: |
RS485 Modbus\NB |
Display: |
LCD Digital Display |
Frequency: |
50Hz |
OEM/ODM: |
Avaliable |
Starting Current (A): |
0.004Ib |
Relative Humidity: |
≤95% |
Storage Temperature: |
-40℃~70℃ |
Weight: |
0.2Kg (net) |
Color: |
White |
Material: |
PC |

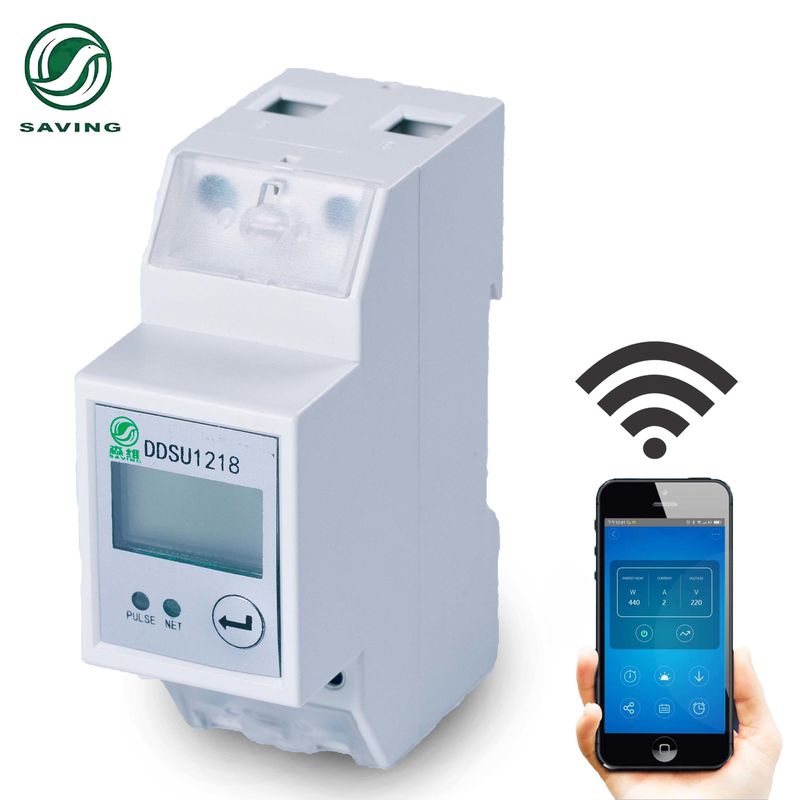

Din Rail Wifi Power Meter 220V 5(60)A Single Phase Smart Meters with Electrical Monitoring System
CE Din Rail Wifi Power Meter 220V 5(60)A Single Phase Smart Meters with Electrical Monitoring System
Product Description
The DDSU1218 single-phase electronic energy meter (Din rail) is mainly used for measuring single-phase AC power consumption. It can be pre paid for control, and can control the load and time of the three outgoing lines separately. It also supports the function of recording and storing nearly 10 malignant load events. The management terminal supports RS485 and NB communication, making it easy to achieve remote meter reading Remote recharge, remote control, and other functions.
Parameter
|
Measurement function
|
Voltage
|
Voltage waste
|
error<10VA
|
|
|
Impedance
|
>2MΩ
|
|||
|
Accuracy grade
|
±0.2%
|
|||
|
Current
|
Current waste
|
error<4VA
|
||
|
Accuracy grade
|
±0.2%
|
|||
|
Power
|
Active, reactive and power error±0.2%
|
|||
|
Grid frequency
|
45-65Hz error±0.2%
|
|||
|
electric energy
|
Active power level 1
|
|||
|
Digital signal
|
Electric pulse output
|
Active optocoupler output
|
||
|
Pulse constant
|
1600imp/KWh
|
|||
|
Starting current
|
0.004Ib
|
|||
|
Communication
|
Interface and communication protocol
|
RS485¨ Modbus¨ DL/T 645-2007¨
|
||
|
Mailing address range
|
Modbus 1~247
|
|||
|
Baud rate
|
1200bps~9600bps
|
|||
Main Functions
1. Metering function
Jiangsu Saving Electronics Co.,Ltd. was established in August 2011, the founder focused on energy metering, energy consumption monitoring overall solution design for more than 20 years, the core technology backbone and management cadres are senior experts in the industry for more than 8 years.
Innovation is the eternal pursuit of Senwei people. We will continue to give full play to our technical advantages in the field of energy measurement and management to help our customers achieve the goal of scientific energy use, energy saving and consumption reduction.
Certifications
FAQ
1. Q: What after-sales service is provided? A: Usually, we provide online technical services, including product instructions, remote software debugging, and online video guidance. If needed, we can go to customers' site for products debugging and project guidance. But customers should be responsible for our accommodation, transportation and safety.
2. Q: Are you a direct manufacturer and exporter from China?A: Yes, we are. We are the local OEM & ODM manufacturer, have our own factory and International Trade Department.
3. Q: Where’s your factory located?A: Our factory locates in Yixing city, Jiangsu Province, China. It takes about 2hours by speed train from Shanghai Airport to our city. You are warmly welcome to visit our factory anytime.
4. Q: How do I purchase your goods?A: Please send us your inquiries (specification, pictures, application) via Alibaba, E-mail, Wechat or WhatsApp us. Also you can give us a call directly about your requirements, we’ll reply you ASAP.
5. Q: How long is the lead time? A: It takes about 30 working days after sample confirmed and deposit received. If you need the goods urgently, please tell us, and we can will try our best to give you priority.
