Product Details
Place of Origin: China
Brand Name: Saving
Certification: CE
Model Number: DDZY1218
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: $20.12/pieces-$25.24/pieces
Packaging Details: 160x112x58mm
Delivery Time: 5-15 works days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000pieces per month
Communication: |
RS485\GPRS Modbus |
Display: |
LCD Digital Display |
Frequency: |
50Hz |
OEM/ODM: |
Avaliable |
Starting Current (A): |
0.004Ib |
Relative Humidity: |
≤95% |
Storage Temperature: |
-40℃~70℃ |
Weight: |
0.7Kg (net) |
Color: |
White |
Material: |
PC |
Communication: |
RS485\GPRS Modbus |
Display: |
LCD Digital Display |
Frequency: |
50Hz |
OEM/ODM: |
Avaliable |
Starting Current (A): |
0.004Ib |
Relative Humidity: |
≤95% |
Storage Temperature: |
-40℃~70℃ |
Weight: |
0.7Kg (net) |
Color: |
White |
Material: |
PC |

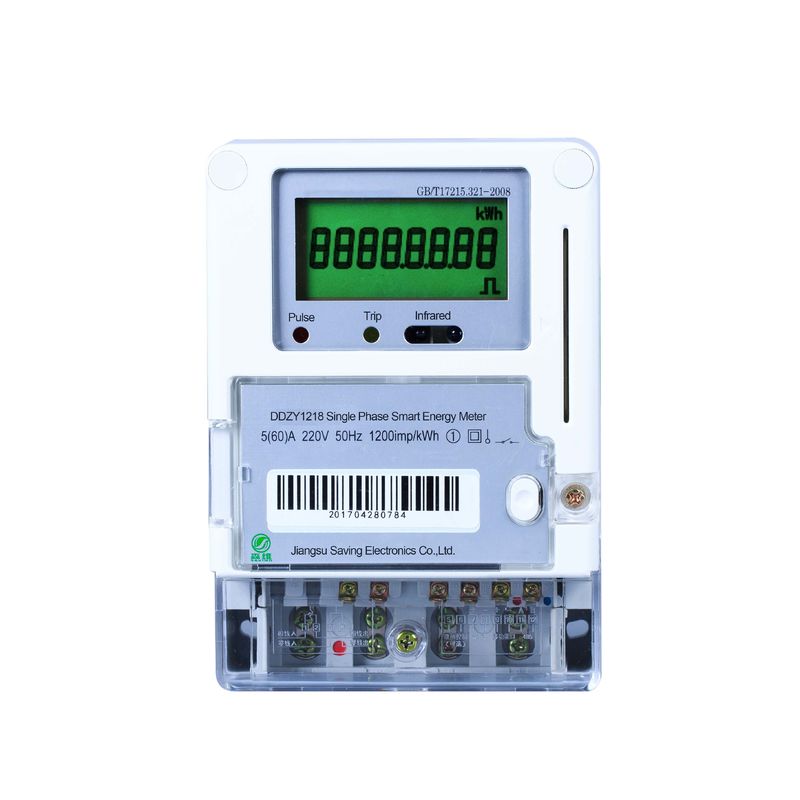

GSM Prepaid Energy Meter Smart Programmable Prepaid IC Card Meter Relay Single Phase Energy Meter with RS485
Product Description
DDZY1218-M single-phase IC Card charge-controlled smart electric energy meter is a new generation of electric energy metering product developed and produced by our company in accordance with the relevant technical specifications of smart electric energy meters of the State Grid Corporation of China.
Parameter
|
Reference Voltage
|
220V
|
|||
|
Current Specification
|
5(20),5(60),10(40),15(60)A
|
|||
|
Rated Frequency
|
50Hz
|
|||
|
Accuracy Level
|
Active Level 1, Reactive Level 2
|
|||
|
Power Consumption
|
Voltage line: <=1.5W, 10VA; current line: <1VA
|
|||
|
Temperature Range
|
Working temperature range -25~55degree,
extreme working temperature range -40~70 degree |
|||
|
Meter Constant(imp/kWh)
|
1200
|
|||
|
Humidity Range
|
40%～60%, working relative humidity be controlled within 95%
|
|||
Main Functions
1. Flame retardant , easy to install
2. Active &Reactive energy measurement functions ,can display time, alarm code, etc.
3. With the function of opening the cover record, it can be inquired to prevent theft of electricity.
4. The energy meter has the function of multiply tariff(variable rate)
5. Local IC card fee control method 6. Communication method: RS485, infrared
7. It has the function of clearing the meter, which is convenient and flexible to use.
