Product Details
Place of Origin: China
Brand Name: Saving
Certification: CE
Model Number: DTZY1218
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: $60.55/pieces-$90.97/pieces
Packaging Details: 256*170*75mm
Delivery Time: 5-15 works days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000pieces per month
Communication: |
RS485 Modbus |
Display: |
LCD Digital Display |
Frequency: |
50Hz |
OEM/ODM: |
Avaliable |
Starting Current (A): |
0.004Ib |
Relative Humidity: |
≤95% |
Storage Temperature: |
-40℃~70℃ |
Weight: |
2Kg (net) |
Color: |
White |
Material: |
PC |
Communication: |
RS485 Modbus |
Display: |
LCD Digital Display |
Frequency: |
50Hz |
OEM/ODM: |
Avaliable |
Starting Current (A): |
0.004Ib |
Relative Humidity: |
≤95% |
Storage Temperature: |
-40℃~70℃ |
Weight: |
2Kg (net) |
Color: |
White |
Material: |
PC |

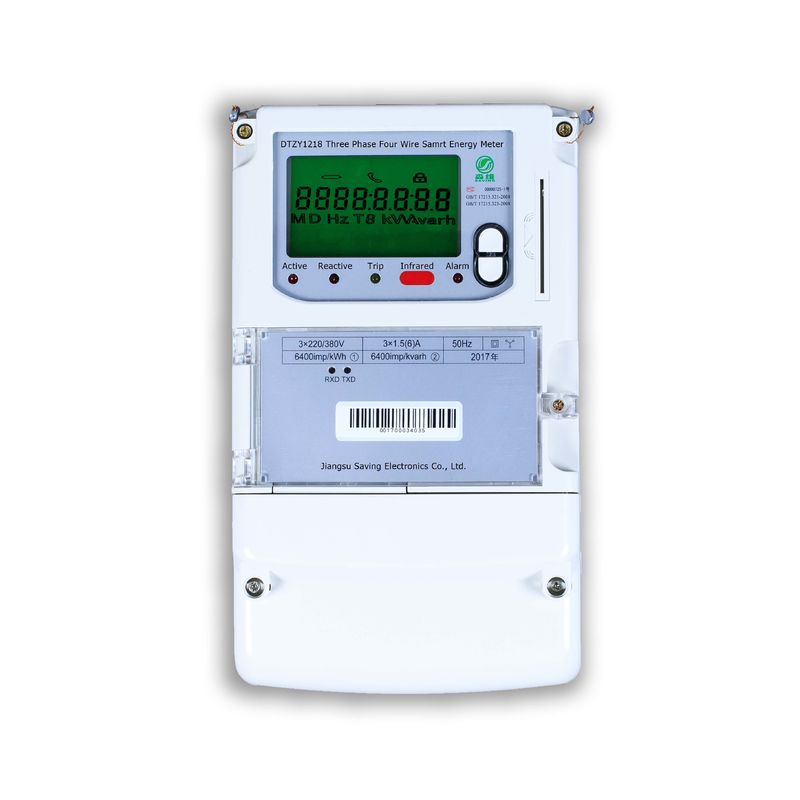

3 Phase Multifunction Power Meter 100/80A 4 Wire Multi Channel Electricity Meter
3 Phase Multifunction Power Meter 100/80A 4 Wire Multi Channel IC Card Prepaid Electricity Meter With Rs485
Product Description
3-phase 4-wire energy meter (remote) is a new energy measurement product developed and produced by our company according to the technical specifications of GB/T17215.321-2008 and GB/T17215.323-2008. This product uses large-scale integrated circuits and SMT techniques, with functions such as electrical energy measurement, data processing, real-time monitoring, and information interaction.
Parameter
|
Reference Voltage
|
3 x 220V / 380V
|
|||
|
Current Specification
|
3×1.5(6),3×5(20),3×10(40),3×5(60)A ,3×20(80)A
|
|||
|
Rated Frequency
|
50Hz
|
|||
|
Accuracy Level
|
Active Level 1, Reactive Level 2
|
|||
|
Power Consumption
|
Voltage line: <=1.5W, 5VA; current line: <1VA
|
|||
|
Temperature Range
|
Working temperature range -25~55degree,
extreme working temperature range -40~70 degree |
|||
|
Meter Constant(imp/kWh)
|
6400,400,240
|
|||
|
Humidity Range
|
40%～60%, working relative humidity be controlled within 95%
|
|||
Main Functions
1. Flame retardant , easy to install
2. Active &Reactive energy measurement functions ,can display time, alarm code, etc.
3. With the function of opening the cover record, it can be inquired to prevent theft of electricity.
4. The energy meter has the function of multiply tariff(variable rate)
5. Local IC card fee control method
6. Communication method: RS485, infrared
7. It has the function of clearing the meter, which is convenient and flexible to use.
Jiangsu Saving Electronics Co.,Ltd. was established in August 2011, the founder focused on energy metering, energy consumption monitoring overall solution design for more than 20 years, the core technology backbone and management cadres are senior experts in the industry for more than 8 years.
Core products such as: smart meter, guide rail smart meter, multi-functional digital meter, multi-user electricity meter, power information collection terminal, concentrator, power energy efficiency monitoring terminal, etc., are independently developed and produced. Jiangsu Saving Electronics Co.,Ltd has 25 authorized patents, 12 software Copyrights, belongs to a national high-tech enterprise.
FAQ
1. Q: What after-sales service is provided?A: Usually, we provide online technical services, including product instructions, remote software debugging, and online video guidance. If needed, we can go to customers' site for products debugging and project guidance. But customers should be responsible for our accommodation, transportation and safety.
2. Q: Are you a direct manufacturer and exporter from China?A: Yes, we are. We are the local OEM & ODM manufacturer, have our own factory and International Trade Department.
3. Q: Where’s your factory located?A: Our factory locates in Yixing city, Jiangsu Province, China. It takes about 2hours by speed train from Shanghai Airport to our city. You are warmly welcome to visit our factory anytime.
4. Q: How do I purchase your goods?A: Please send us your inquiries (specification, pictures, application) via Alibaba, E-mail, Wechat or WhatsApp us. Also you can give us a call directly about your requirements, we’ll reply you ASAP.
5. Q: How long is the lead time? A: It takes about 30 working days after sample confirmed and deposit received. If you need the goods urgently, please tell us, and we can will try our best to give you priority.
