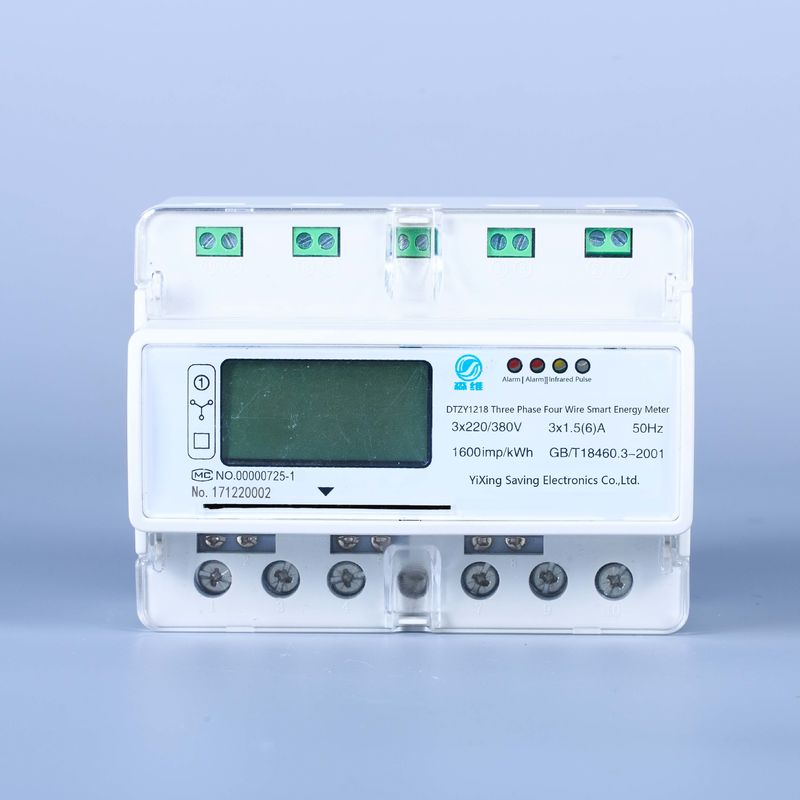

Wifi 3 Phase Din Rail Meter Smart Multi Tariff Digital Energy 3p4w With Mqtt

Product Details

Place of Origin: China

Brand Name: Saving

Certification: CE

Model Number: DTSU1218

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: $33.09/pieces-$58.82/pieces

Packaging Details: 126x97x77mm

Delivery Time: 5-15 works days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 10000pieces per month

Get Best Price
Highlight:

Wifi 3 phase din rail meter

,

3 phase din rail meter 3p4w

,

3 phase smart meter With Mqtt

Color:
White
Communication:
RS485 Modbus\NB\WiFi
Display:
LCD Digital Display
Frequency:
50Hz
OEM/ODM:
Avaliable
Starting Current (A):
0.004Ib
Relative Humidity:
≤95%
Storage Temperature:
-40℃~70℃
Weight:
0.6Kg (net)
Color:
White
Communication:
RS485 Modbus\NB\WiFi
Display:
LCD Digital Display
Frequency:
50Hz
OEM/ODM:
Avaliable
Starting Current (A):
0.004Ib
Relative Humidity:
≤95%
Storage Temperature:
-40℃~70℃
Weight:
0.6Kg (net)
Wifi 3 Phase Din Rail Meter Smart Multi Tariff Digital Energy 3p4w With Mqtt

Muilti-functional Wifi 3phase Digital Energy Meter Smart 3p4w Multi Tariff Din Rail Energy Meter



  Muilti-functional Wifi 3phase Digital Energy Meter Smart 3p4w Multi Tariff Din Rail Energy Mete With Mqtt




Product Description

Din Rail 3 Phase 4 Wire Smart Meter Electricity With Multi-module For Household is a new energy measurement product developed and produced by our company according to the technical specifications of GB/T17215.321-2008 and GB/T17215.323-2008. This product uses large-scale integrated circuits and SMT techniques, with functions such as electrical energy measurement, data processing, real-time monitoring, and information interaction.



Parameter



Reference Voltage
3 × 220 V / 380 V
Current Specification
3×1.5(6),3×5(60),3×10(40),3×20(80)A ,3×10(100)A
Rated Frequency
50Hz
Accuracy Level
Active Level 1
Power Consumption
Voltage line: <=1.5W, 10VA; current line: <2VA
Temperature Range
Working temperature range -25~55 degree,
extreme working temperature range -40~70 degree
Meter Constant(imp/kWh)
6400,400
Humidity Range
40%~60%, working relative humidity be controlled within 95%

Wifi 3 Phase Din Rail Meter Smart Multi Tariff Digital Energy 3p4w  With Mqtt 0



Main Functions

1.Display with LCD display with wide viewing angle and high contrast
2.Communication method: RS485, infrared
3.Applicable place:community,hotel,shopping mall ,office building,school,property,etc
4.Measurement functions:multiply tariff ,sell electricity remotely
5.High precision measurement:positive/negative,active/reactive energy
6.Easy installation:Adopt guide rail installation,convenient installation,light volume
7.Component:high-quality components 8.Has the function of multiply tariff
9.The power-off switch can be built-in or external

Application
64x64
Company Profile
Jiangsu Saving Electronics Co.,Ltd. was established in August 2011, has 25 authorized patents, 12 software Copyrights, belongs to a national high-tech enterprise.The founder focused on energy metering, energy consumption monitoring overall solution design for more than 20 years, the core technology backbone and management cadres are senior experts in the industry for more than 8 years.Core products such as: smart meter, guide rail smart meter, multi-functional digital meter, multi-user electricity meter, power information collection terminal, concentrator, power energy efficiency monitoring terminal, etc., are independently developed and produced.
Wifi 3 Phase Din Rail Meter Smart Multi Tariff Digital Energy 3p4w  With Mqtt 2

Packaging & Shipping

The Three Phase Prepaid Energy Meter should be shipped with a reliable carrier such as UPS, FedEx, or USPS. The carrier should be able to provide tracking information and insurance in case of loss or damage during transit.

30x30
64x64

Certifications

64x64

FAQ

1. Q: What after-sales service is provided? A: Usually, we provide online technical services, including product instructions, remote software debugging, and online video guidance. If needed, we can go to customers' site for products debugging and project guidance. But customers should be responsible for our accommodation, transportation and safety.

2. Q: Are you a direct manufacturer and exporter from China?
A: Yes, we are. We are the local OEM & ODM manufacturer, have our own factory and International Trade Department.

3. Q: Where’s your factory located?
A: Our factory locates in Yixing city, Jiangsu Province, China. It takes about 2hours by speed train from Shanghai Airport to our city. You are warmly welcome to visit our factory anytime.

4. Q: How do I purchase your goods?
A: Please send us your inquiries (specification, pictures, application) via Alibaba, E-mail, Wechat or WhatsApp us. Also you can give us a call directly about your requirements, we’ll reply you ASAP.
