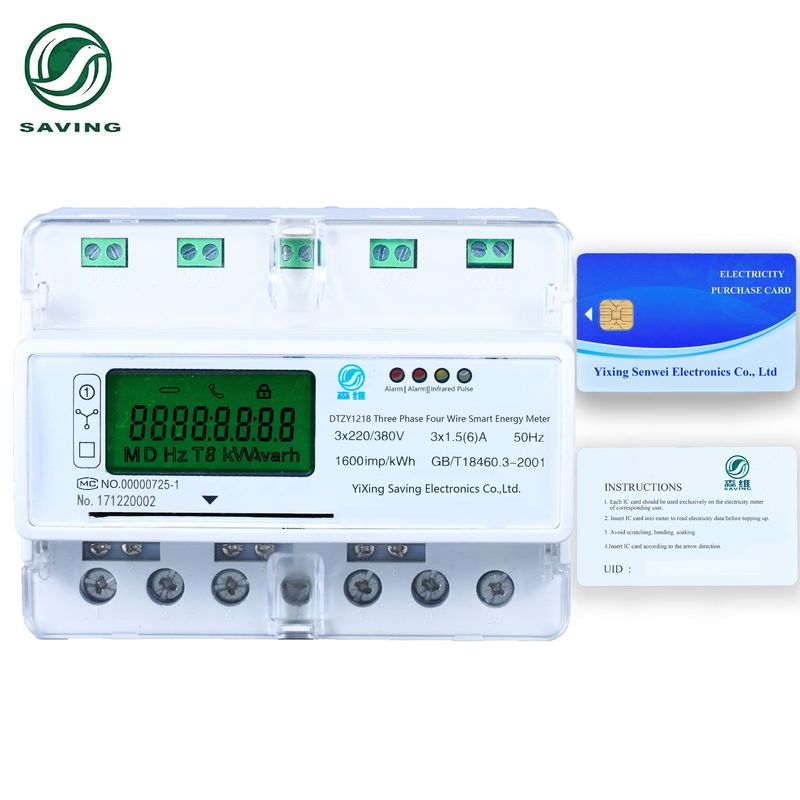

Oem Perpaid Din Rail 3 Phase Energy Meter Multifunction Rs485 Energy Meter 50Hz

Product Details

Place of Origin: China

Brand Name: Saving

Certification: CE

Model Number: DTSU1218

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: $33.09/pieces-$58.82/pieces

Packaging Details: 126x97x77mm

Delivery Time: 5-15 works days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 10000pieces per month

Get Best Price
Highlight:

Oem Din Rail 3 Phase Energy Meter

,

Perpaid Din Rail 3 Phase Energy Meter

,

rs485 energy meter 50Hz

Color:
White
Communication:
RS485 Modbus\NB\WiFi
Display:
LCD Digital Display
Frequency:
50Hz
OEM/ODM:
Avaliable
Starting Current (A):
0.004Ib
Relative Humidity:
≤95%
Storage Temperature:
-40℃~70℃
Weight:
0.6Kg (net)
Color:
White
Communication:
RS485 Modbus\NB\WiFi
Display:
LCD Digital Display
Frequency:
50Hz
OEM/ODM:
Avaliable
Starting Current (A):
0.004Ib
Relative Humidity:
≤95%
Storage Temperature:
-40℃~70℃
Weight:
0.6Kg (net)
Oem Perpaid Din Rail 3 Phase Energy Meter Multifunction Rs485 Energy Meter 50Hz

Oem Three Phase Din Energy Meter Ic Card Perpaid Multifunction 3 Phase Power Meter With Rs485

Ic Card Perpaid Din Rail 3 Phase Energy Meter Multifunction Power Meter With Rs485





Product Description

Three phase din-rail type electric meter is a kind of new style three phase whole electric type meter,and adopt up to date micro-electric technique an imported special large scale integrate circuit,use advanced technique of digital sampling technique and SMT technology etc., the meter are completely conformed to the relative requirements of the National Standard GB/T17215-2002 and international standard IEC62053-21 on the meter(Class 1 or Class 2)

The meter is used for measuring active energy power consumption in a rated frequency of 50Hz or 60Hz three phase alternating current circuit,it can accurately and directly measure active energy consumption from positive and reverse directions.it has following features:good reliability,small volume,light weight,specious nice appearance.advanced technology.it can choose many kinds of installation ways such as 35 din standard rail





Parameter

Working voltage range 3x230V/400V
Rate Current 20(100)A, or other as required
Frequency 50Hz or 60Hz
Connection mode CT type or Direct type
Display LCD
Accuracy class 1.0
IP grade IP20
Constant 400 imp/kWh
Executive standard DIN 43880 IEC62053-21 IEC62052-11
Work temperature -30℃~70℃

Oem Perpaid Din Rail 3 Phase Energy Meter Multifunction Rs485 Energy Meter 50Hz 0Oem Perpaid Din Rail 3 Phase Energy Meter Multifunction Rs485 Energy Meter 50Hz 1



Main Functions

1.Display with LCD display with wide viewing angle and high contrast
2.Communication method: RS485, infrared
3.Applicable place:community,hotel,shopping mall ,office building,school,property,etc
4.Measurement functions:multiply tariff ,sell electricity remotely
5.High precision measurement:positive/negative,active/reactive energy
6.Easy installation:Adopt guide rail installation,convenient installation,light volume
7.Component:high-quality components 8.Has the function of multiply tariff
9.The power-off switch can be built-in or external
Oem Perpaid Din Rail 3 Phase Energy Meter Multifunction Rs485 Energy Meter 50Hz 2
Oem Perpaid Din Rail 3 Phase Energy Meter Multifunction Rs485 Energy Meter 50Hz 3

Application
64x64
Company Profile
Oem Perpaid Din Rail 3 Phase Energy Meter Multifunction Rs485 Energy Meter 50Hz 5

Packaging & Shipping

The Three Phase Prepaid Energy Meter should be shipped with a reliable carrier such as UPS, FedEx, or USPS. The carrier should be able to provide tracking information and insurance in case of loss or damage during transit.

30x30
64x64

Certifications

64x64

FAQ

1. Q: What after-sales service is provided? A: Usually, we provide online technical services, including product instructions, remote software debugging, and online video guidance. If needed, we can go to customers' site for products debugging and project guidance. But customers should be responsible for our accommodation, transportation and safety.

2. Q: Are you a direct manufacturer and exporter from China?
A: Yes, we are. We are the local OEM & ODM manufacturer, have our own factory and International Trade Department.

3. Q: Where’s your factory located?
A: Our factory locates in Yixing city, Jiangsu Province, China. It takes about 2hours by speed train from Shanghai Airport to our city. You are warmly welcome to visit our factory anytime.

4. Q: How do I purchase your goods?
A: Please send us your inquiries (specification, pictures, application) via Alibaba, E-mail, Wechat or WhatsApp us. Also you can give us a call directly about your requirements, we’ll reply you ASAP.
