Product Details
Place of Origin: China
Brand Name: Saving
Certification: CE
Model Number: DJSU1218
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: $33.09/pieces-$58.82/pieces
Packaging Details: 72*98*66.5mm
Delivery Time: 7-15 works days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 Unit/Units Per Month
Frequency Range: |
50-60Hz |
Accuracy Level: |
Active Level 1, Reactive Level 2 |
Current Range: |
1-100A |
Standard: |
GB/T17215.321-2008 |
Data Storage: |
1000 KWh |
Accuracy: |
Class 1.0 |
Voltage Range: |
110-220V |
Colour: |
White |
Frequency Range: |
50-60Hz |
Accuracy Level: |
Active Level 1, Reactive Level 2 |
Current Range: |
1-100A |
Standard: |
GB/T17215.321-2008 |
Data Storage: |
1000 KWh |
Accuracy: |
Class 1.0 |
Voltage Range: |
110-220V |
Colour: |
White |

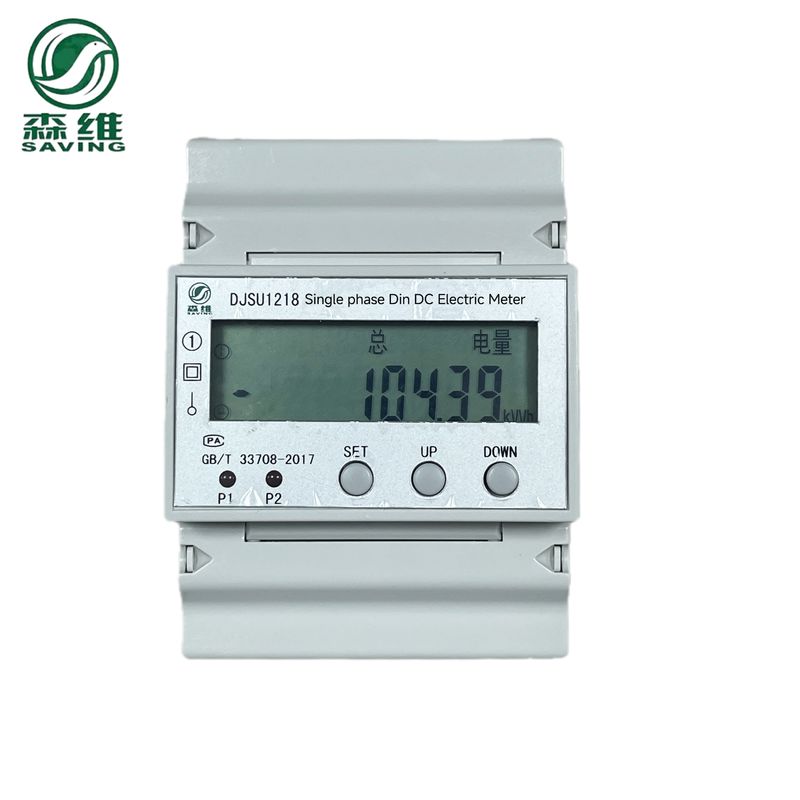

DJSU1218 electronic DC energy meter is a two circuit DC energy meter with LCD display and RS485 function Can exchange data with a PC. It is suitable for Charging station DC metering, battery, solar panel and other DC signal equipment power measurement and Electric energy measurement can also be used in modern DC power supply and distribution systems such as industrial and mining enterprises, civil buildings, and building automation. The product consists of a measurement unit, data processing unit, communication unit, display unit, etc. It has the functions of electric energy measurement, data processing Real time monitoring and LCD display function. This electricity meter complies with Q/GDW1825-2013 Technical Specification for DC Energy Meters and GB/T29318-2012 Technical requirements for off-board charging energy measurement of electric vehicles. DJSU1218 product has rich functions and can meet various application needs
|
Technical parameters
|
Index
|
||
|
Accuracy Rating
|
Voltage
|
Level 0.5
|
|
|
Current
|
Level 0.5
|
||
|
Power, electrical energy
|
Level 1
|
||
|
Input
|
Measure the signal
|
2 DC voltages, 2 DC currents
|
|
|
Voltage
|
Input range
|
DC 24/48V
|
|
|
Linear measurement range
|
10%Un⁓120%Un(Un is rated voltage)
|
||
|
power consumption
|
＜0.5W
|
||
|
|
Input range
|
DC0⁓4V Hall input,In:50A,100A,200A etc. Shunt:75mV
|
|
|
Linear measurement range
|
1%In⁓120%In(In is rated current)
|
||
|
power consumption
|
In is the rated current)
|
||
|
Display
|
Display Manner
|
LCD display
|
|
|
Working environment
|
temperature
|
Working:-25℃⁓+55℃,Storage: -40℃⁓+70℃
|
|
|
humidity
|
5%RH⁓95%RH(non-condensing)
|
||
1.Equipped with two forward and reverse electric energy metering functions;
2.Real time measurement of voltage, current, and power;Last 12 months settlement function, daily freezing of forward and reverse electric energy, daily freezing of data on the 31st day, default daily at 00:00, can be set;
3.Equipped with calendar, timing, and leap year automatic conversion functions, with time calibration function.
1. Q: What after-sales service is provided?
A: Usually, we provide online technical services, including product instructions, remote software debugging, and online video guidance. If needed, we can go to customers' site for products debugging and project guidance. But customers should be responsible for our accommodation, transportation and safety.
2. Q: Are you a direct manufacturer and exporter from China?
A: Yes, we are. We are the local OEM & ODM manufacturer, have our own factory and International Trade Department.
3. Q: Where’s your factory located?
A: Our factory locates in Yixing city, Jiangsu Province, China. It takes about 2hours by speed train from Shanghai Airport to our city. You are warmly welcome to visit our factory anytime.
4. Q: How do I purchase your goods?
A: Please send us your inquiries (specification, pictures, application) via Alibaba, E-mail, Wechat or WhatsApp us. Also you can give us a call directly about your requirements, we’ll reply you ASAP.
5. Q: How long is the lead time?
A: It takes about 30 working days after sample confirmed and deposit received. If you need the goods urgently, please tell us, and we can will try our best to give you priority.
