100a Din Rail 3 Phase Energy Meter Digital Solar Meter For 100a Directly

Product Details

Place of Origin: China

Brand Name: Saving

Certification: CE

Model Number: DTSU1218

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: $33.09/pieces-$58.82/pieces

Packaging Details: 126x97x77mm

Delivery Time: 5-15 works days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 10000pieces per month

Get Best Price
Highlight:

100a Din Rail 3 Phase Energy Meter

,

Din Rail 3 Phase Energy Meter 50Hz

,

100a digital solar meter

Color:
White
Communication:
RS485 Modbus\NB\WiFi
Display:
LCD Digital Display
Frequency:
50Hz
OEM/ODM:
Avaliable
Starting Current (A):
0.004Ib
Relative Humidity:
≤95%
Storage Temperature:
-40℃~70℃
Weight:
0.6Kg (net)
Color:
White
Communication:
RS485 Modbus\NB\WiFi
Display:
LCD Digital Display
Frequency:
50Hz
OEM/ODM:
Avaliable
Starting Current (A):
0.004Ib
Relative Humidity:
≤95%
Storage Temperature:
-40℃~70℃
Weight:
0.6Kg (net)
100a Din Rail 3 Phase Energy Meter Digital Solar Meter For 100a Directly

 3 Phase Power Usage Energy Meter For 100a Directly Dc Solar Energie Meter Lcd Display Kwh Meter



100a Din Rail 3 Phase Energy Meter Directly Dc Solar Energie Meter Lcd Display Kwh Meter

Product Description

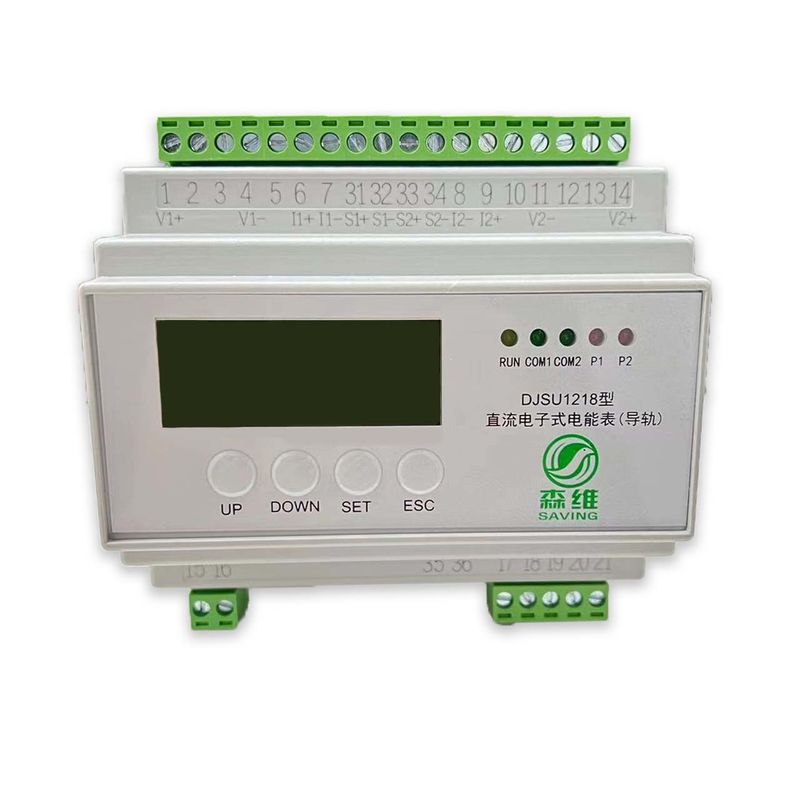

DJSU1218 DC electronic energy meter (guide rail) is designed by our company for new energy vehicle charging pile, solar power supply, telecom base station, building automation and other applications.This electric energy meter is a new generation of micro intelligent DC electric energy meter, which adopts standard DIN35mm guide rail installation and modular structure design. It has the advantages of small size, easy installation, easy networking, etc.





Parameter

Project
Technical requirements
Metrology accuracy class
Level 1.0
Operating supply voltage
220VAC or 9~36VDC
Power supply operating range
220VAC± 20%/ 9-72VDC
Measurement
voltage
Measuring range
0~1000 VDC
Straight-in
precision
RMS 1%
current
Measuring range
75A: 75mV~750A: 75mV
Shunts
precision
RMS 1 %
power
precision
RMS 1%
resolution
0.001kW
correspondence
Communication interface
Dual RS485 interface (can be used separately)
Communications Protocol
DL/T 698.45—2017,DL/T 645-2007,
Modbus-RTU
Timing
Communication rate
2400bps ~9600b default 2400bps
Clock error
0.5 s/d





Main Functions

1.Display with LCD display with wide viewing angle and high contrast
2.Communication method: RS485, infrared
3.Applicable place:community,hotel,shopping mall ,office building,school,property,etc
4.Measurement functions:multiply tariff ,sell electricity remotely
100a Din Rail 3 Phase Energy Meter Digital Solar Meter For 100a Directly 0


Application
100a Din Rail 3 Phase Energy Meter Digital Solar Meter For 100a Directly 1
100a Din Rail 3 Phase Energy Meter Digital Solar Meter For 100a Directly 2
100a Din Rail 3 Phase Energy Meter Digital Solar Meter For 100a Directly 3
Company Profile
100a Din Rail 3 Phase Energy Meter Digital Solar Meter For 100a Directly 4

Packaging & Shipping

The Three Phase Prepaid Energy Meter should be shipped with a reliable carrier such as UPS, FedEx, or USPS. The carrier should be able to provide tracking information and insurance in case of loss or damage during transit.

30x30
64x64

Certifications

64x64

FAQ

1. Q: How long is the lead time?
A: It takes about 30 working days after sample confirmed and deposit received. If you need the goods urgently, please tell us, and we can will try our best to give you priority.
2. Q: How can I get a sample from you?
A: If we have stock for the models you need, we can send you the sample for free directly. But if you need CUSTOMIZATION, sampling
cost will be charged. And for both ways, the postage needs to be charged by you. Samples can be sent through Fedex, UPS, TNT, DHL, etc.
3. Q: How can I pay you?
A: For mass production goods, you need to pay 30% deposit before production and 70% balance upon shipment. The common way is T/T in advance. Balance via L/C, DP at sight is also accepted.
4. Q: Can I check quality of goods before delivery?
A: Yes, either you or your company colleagues, or a third party is welcome to our factory to do the inspection before delivery.
5. Q: How the goods are delivered to me?
A: For small quantity, we advise to deliver by courier, like Fedex, UPS, DHL, etc.
For big quantity, we advise to ship by sea. We can send goods to your assigned Shipping Forwarder (FOB price). Or if you don’t have one, we can quote you CIF price.
